Order upload .csv file format

About the order upload file

When uploading orders into TT, the .csv file must adhere to the following rules:

• Files must be saved as plain text format.
• The filename must use a .csv file extension.
• Data fields must be comma delimited.
• Spaces after commas (for readability) are allowed.
• You can upload orders from a .csv file using Bloomberg codes by including a “BBG” column in the file.

Sample .csv files

Native Order Types

Plain Text Format

  B/S, OrdQty, Exch, Contract, Price, TIF, Type, TrigPrc, DispQty, Account, TriggerPriceType
  B, 10, CME, ESZ4, 2782.75, Day, Limit, , , 12345,
  S, 25, CME, ZBZ4, 141'24, GTC, Stop Limit, 142'16, , 12345,
  B, 100, CME, ESZ4, 2780.00, Day, Iceberg, , 3, 12345,

Spreadsheet Format

TT Iceberg

Plain Text Format

  B/S, OrdQty, Exch, Contract, Price, Account, TIF, Type, End, DiscVal, Variance, TriggerType, TrigPrc, TriggerPriceType
  B, 10, CME, ESZ4, 5600, Acct_123, Day, TT Iceberg, Day, 1, , , ,
  B, 20, CME, ESZ4, 5601, Acct_123, Day, TT Iceberg, Day, 2, 50, , ,
  B, 50, CME, ESZ4, 5602, Acct_123, Day, TT Iceberg, Day, 10, , Stop, 5900, LTP

Spreadsheet Format

TT Time Sliced

Plain Text Format

  B/S, OrdQty, Exch, Contract, Price, Account, TIF, Type, ChildOrderType, End, EndTime, DiscVal, Interval, LeftoverAction
  B, 10, CME, ESZ4, 5800.00, Acct_A, Day, TT Time Sliced, Limit, Day, , 1, 100000, Leave
  B, 10, CME, ESZ4, 5800.00, Acct_A, Day, TT Time Sliced, Limit, GTC, , 1, 40123, Leave
  B, 10, CME, ESZ4, 5800.00, Acct_A, Day, TT Time Sliced, Limit, Time, 14:00, 1, 59999, Leave
  B, 10, CME, ESZ4, 5800.00, Acct_A, Day, TT Time Sliced, Limit, Time, 14:30:00, 1, 59999, Leave
  B, 10, CME, ESZ4, 5800.00, Acct_A, Day, TT Time Sliced, Limit, Time, 28Dec24 14:35:00, 1, 59999, Leave

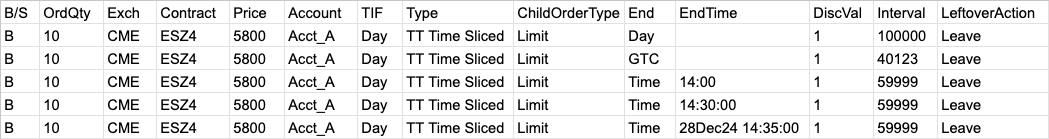

Spreadsheet Format

File structure

The .csv file can contain a maximum of 1000 order rows, as follows:

• Row 1 must be the header fields, as follows:
  • The row must contain columns for all fields used by any of the orders.
  • The header column names must exactly match the field names, including capitalization.
  • The field columns can be arranged in any order, but the data within a column must match the value expected by the column header.
  • It must contain a field named “Type” which defines the order type for each row because the upload logic uses the order type to look up what parameters are available for the order type for each row. It is also a key piece of data and determines what parameters are available for that row, we do NOT allow the user to change the order type from the preview screen using the drop down menu. 1i>
  • “ChildTIF” or ‘TIF-Child” field is not supported.
  • The Time-In-Force (TIF) for non-algo orders is the value normally visible in the main TIF control on the Order Ticket.
  • The Time-In-Force (TIF) for algo orders has two components:
    • the TIF for the algo child orders is the value normally visible in the main TIF control on the Order Ticket.
    • the TIF for the parent algo order is the value set in the “End” dropdown in the algo parameter flyout.
  • When an algo order is desired to complete at some other value than Day or GTC, the “End” field in the csv file should be set to “Time”, and an additional column named “EndTime” should define the desired date/time of the order. This string value can be a time in HH:MM format (e.g. 14:00), HH:MM:SS format (e.g. 14:05:30), or a full date and time string (e.g. 13Nov24 14:29:55).
  • To define the disclosed quantity of each slice of slicing order type (native Iceberg, as well as algos including TT Iceberg, TT Time Sliced and TT Time Duration):
    • use “DispQty” for native Iceberg orders
    • use “DiscVal” (and an optional “DiscValType” which can be Qty or Pct) for algo orders (including TT Iceberg, TT Time Sliced and TT Time Duration)
• Rows 2-n (up to 1001) contain the values for a single order per row.

Note: If the file contains both a TT instrumentID and a BBG code, then the instrumentID takes priority and ignores the BBG code.

Supported field names for all orders

All uploaded orders can use the following fields.

Field name	Required?	Description
Account	Required	Account number associated with the transaction.
AcctType	Optional	Account type code that defines the trader’s relationship with a clearing house (e.g. A1, P1, etc.).
B/S	Required	Whether the transaction represents a Buy or Sell order
BBG	Optional	Bloomberg product symbol Note: Bloomberg symbology must be enabled for your company by TT. Note: You must include the full Bloomberg code, including the “Comdty” string in the cell: e.g., “USU4 Comdty” as the BBG code for ZB Sep24.
C.D.I.	Optional	(MiFID) Commodity Derivative Indicator. Indication of whether the order is for hedging purposes to reduce risk.
ClearingAcct	Optional	Exchange Clearing Account. Account ID assigned the user by the exchange.
Client	Optional	(MiFID) Client. Identification of the customer (Short Code).
Compliance Text	Optional	Text field available to include additional values for compliance.
Contract	Required	The name and contract expiry for the instrument or strategy. The contract name must use the short-form name, such as ESZ8. Note: Optional if InstrumentID is present.
D.E.A.	Optional	(MiFID) Direct Electronic Access. Shows whether or not the order is sent from direct/sponsored access, or from another source.
DispQty	Optional	Amount of the total order quantity to disclose
Exch	Required	Name of the exchange. Note: Optional if InstrumentID is present.
ExecDec	Optional	(MiFID) Execution Decision. A Short Code as an indication of who or what algo submitted the order.
ExecDecQ	Optional	(MiFID) Execution Decision. A Short Code as an indication of who or what algo submitted the order.
GiveUp	Optional	Give-up party identifier.
InstrumentID	Optional	Unique TT instrument identifier If specified, the ID must be enclosed in single quotes (‘). Also, if the InstrumentID is specified, TT will use this value instead of the Exch and Contract fields to identify the instrument. Valid when the Type column contains “Limit”, “TT Iceberg”, “TT Timed”, “TT Time Sliced”, and “TT Time Duration”. Note: Required for Autospreader orders
InvestDec	Optional	(MiFID) Investment Decision. A Short Code as an indication of who made the trading decision.
InvestDecQ	Optional	(MiFID) Investment Decision Qualifier. The Order Tag Default qualifier for the InvestDec field as part of MiFID compliance.
LiqProv	Optional	(MiFID) Liquidity Provision. Indication of market making.
O/C	Optional	Type of position (open or close) you are establishing with the order.
OrdQty	Required	Total order quantity
Price	Required	Price of the order or fill.
Profile	Optional	Customer profile.
StageMsg	Optional	Additional execution instructions to include with staged order.
TextA	Optional	User-defined text string.
TextB	Optional	User-defined text string.
TextTT	Optional	User-defined text string.
TIF	Required	Time In Force for the order. For TT Order Types (TT Stop, TT Iceberg, etc.), the TIF must always be set to GTC.
TrdgCap	Optional	Trading Capacity. Indication of a user dealing on own account, trading in a matched principal trading capacity, or trading in any other trading capacity.
TrigPrc	Optional	Trigger price. Note: Required for Stop orders
Type	Required	Type of order associated with this transaction (e.g. Limit, Market, etc.).

Supported field names to TT Order Types

In addition to the standard order fields, you can use all parameters when uploading orders for TT Order Types and TT Premium Order Types. For more information about the parameters you can use for the various TT Order Types, please see below.

Also refer to the TT Order Types Overview and TT Premium Order Types help topic pages.

Note: This can be used together with an optional field DiscValType.

Note: .csv file with DispQty field would still work, and it would require users manually mapping this field to DiscVal in the order upload preview grid. We therefore recommend users using the DiscValfield.

Field Name	Required By	Description
BracketOrderType	TT Bracket	Order type for the parent order
BracketSLOffset	TT Bracket	Number of ticks away from the Stop price to submit a Limit order
ChildOrderType	TT Stop TT Time Sliced TT Time Duration TT Volume Duration	Order type sent when child order is triggered: Limit Market
DiscVal	TT Iceberg TT Time Sliced TT Time Duration	Amount of the total order quantity to disclose
DiscValType	TT Iceberg TT Time Sliced TT Time Duration	Type of the total order quantity to disclose. It can be Qty (quantity) or Pct (percentage).
DispQty	TT Iceberg TT Time Sliced TT Time Duration	Amount of the total order quantity to disclose; includes the type of value (e.g. 100, 25%)
Duration	TT Time Duration	The total length of time to submit each order slice.
DurationBaseUnit	TT Time Duration	Unit of time. Provide this value when Duration is populated. Valid values: min — Length of time in minutes. hr — Length of time in hours.
DurationStartTime	TT Time Duration	When to start submitting orders. Enter a time in hh:mm:ss format.
DurationEndTime	TT Time Duration	When to stop submitting orders. Enter a time in hh:mm:ss format.
EndTime		Time to stop working the order (HH:MM:SS in the exchange timezone). The EndTime field can include just a time by itself (HH:MM:SS) or can optionally include a date with the time (YYYY-MM-DD HH:MM:SS). Instead of a date/time string, the “EndTime” field can also be set as “Day” or GTC”. If one of these restrictions is used, the order “TIF” field can be left blank and the parent order will use the setting in the “EndTime” field. Note: If you omit a time, the order will work until the market closes (GTC).
EndTimeAction		Action to take for any unfilled balance when the End time is reached. Do not provide a value unless EndTime is also populated. Supported values: Cancel — Cancels all child orders and stops the order type. Market — Cancels the resting Limit order and submits a Market order. If provided, a “MktLmtTicks” value can also be populated.
ExcludeImplieds		Whether or not to consider implieds when evaluating a price trigger Yes No
Interval	TT Time Sliced	Length of each slice, in milliseconds
LeftoverAction	TT Time Sliced	How to handle any existing unfilled order quantities when it is time to send the next portion Payup Leave
LeftoverTicks		Number of ticks to add (positive integer) or subtract (negative integer) from your Bid or Offer to determine the price of the limit order Note: Required for TT Time Sliced orders if LeftoverAction is Payup.
LimitPrcType	TT Trailing Limit	Type of price to us as the base price to calculate a Payup price Bid Ask LTP Trigger Same Side Opposite Side Note: Also required for TT Bracket, TT OCO and TT Stop orders when StopOrderType = Limit.
LimitTicksAway	TT Trailing Limit TT Timed	Number of ticks away from the specified limit price to submit the order (-999 to 999)
MktLmtTicks		Sets the number of ticks from LTP to submit a Limit order through the opposite inside market. Enter a positive integer from 0 – 100. This field can be populated when EndTimeAction is set to “Market”.
OcoStopTriggerPrice	TT OCO	Price at which to trigger the Stop Market or Stop Limit order
ProfitTarget	TT Bracket	Initial price for the profit order in the OCO pair: Price = Entry Order Fill Price + Profit target setting, if the TT Bracket order was a bid Price = Entry Order Fill Price – Profit target setting, if the TT Bracket order was an offer
PayupTicks		Number of ticks away from the Stop price to submit a Limit order when a Stop Limit order is triggered; cannot be populated when the main “Price” field is also populated Note: Also required for TT Bracket, TT OCO and TT Stop orders when StopOrderType = Limit.
ResetTrigger	TT Stop	Whether to reset the trade quantity counter back to zero, if the inside market backs away from the trigger price
RetryCount	TT Retry	Number of times to send a rejected order (0-32,000)
RetryInterval	TT Retry	Number of milliseconds between retry attempts (0-100,000)
StartTime		Time to start working the order. Enter a time (HH:MM:SS in the exchange timezone) or one of the following market states: Now Pre-Open Open The StartTime field can include just a time by itself (HH:MM:SS) or can optionally include a date with the time (YYYY-MM-DD HH:MM:SS).
StopOrderType	TT Bracket TT OCO TT Stop	Order type sent when stop order is triggered Limit Market
StopTarget	TT Bracket	Initial price for the stop loss order in the OCO pair: Price = Entry Order Fill Price + Stop loss setting, if the TT Bracket order was a bid Price = Entry Order Fill Price – Stop loss setting, if the TT Bracket order was an offer
Trailing		Whether the trigger price trails the trigger price type by some number of ticks Yes No
TriggerPriceType	TT If Touched TT Stop	Type of price to trigger the order Bid Ask LTP Trigger Same Side Opposite Side
TriggerQty	TT Stop	Quantity of the secondary trigger condition based on the executed quantity (if LTP) or the quantity on the Bid or the Ask. You can includes a comparison operator and the type of value, such as , >=15%.
TriggerTicksAway		Number of ticks away from the specified price to submit the child order
TriggerType		How to handle the trigger price Stop If Touched
Type	All	Name of the TT Order Type. Possible values (with capitalization and spaces) include: TT Bracket TT Iceberg TT If Touched TT Retry TT Stop TT Time Sliced TT Time Duration TT Timed TT Trailing Limit TT With A Tick
Variance	TT Iceberg TT Volume Sliced TT Volume Duration TT Time Sliced TT Time Duration	The percentage (0-100) by which to vary the child order quantity. For example, a variance of “50” allows each child order to have a random quantity within 50% above or below the disclosed quantity.
WATQty	TT With A Tick	WAT threshold quantity; if populated infers that WAT is applied to the child order; includes the type of value (actual or percent), such as 50, 50%
