TT Order Types

TT Order Types

TT Stop order

TT Stop is an order that is triggered when the market has reached or penetrated a specified price in the market. Stop triggers are typically set worse than current market prices, which means that Buy Stops are placed above the current last traded price, while Sell Stops are placed below the last traded price.

Stop orders in place for the same product at the same trigger price (for the same trader or multiple traders), process in a FIFO (first in, first out) order.

Behaviors

The following examples illustrate how you can configure a TT Stop order with different behaviors for the child and parent orders. Also, each example shows how the order will appear in MD Trader.

Triggering a TT Stop order at a specific price level

Using a basic TT Stop lets you set the worst price at which you will execute a trade. A TT Stop order is always placed on the opposite side of the market.

The following example shows how you can flatten a 20-contract short position in the CME 6E Sep19 contract with a Limit order only if the market moves away and a trade occurs four ticks away from the inside market when you place the order. In this case, you would enter a TT Stop order as follows:

  1. From MD Trader or an Order Ticket, set the order quantity to 20.
  2. Select TT Stop from the order type dropdown to display the flyout.

  3. Because you want to trigger the TT Stop order if any trade occurs at a specified price level, select LTP from the Price Type dropdown.

  4. By default, a TT Stop order submits a Limit order with a one-tick payup from the trigger price. This behavior is acceptable in this case, so verify the settings.

  5. Hover the mouse over a price. Notice that the cursor changes to for an invalid price on the same side and to for a valid price on the opposite side.

    If you placed a Buy order at 1.14040 in MD Trader, the TT Stop parent order would resemble the following.

    In this scenario, when a trade occurs at 1.14040, the TT Stop parent order will submit a 20-lot Buy child exchange order at 1.14045.

Setting a liquidity-based trigger at a specific price level

In addition to setting TT Stop orders that trigger at a specificy price level, you can also include a check for the available quantity. When the desired price level is reached, the TT Stop parent order will enter its child order only if the desired quantity is also available at that price. Specifying an available quantity can increase the chances that the child order will be filled quickly.

The following example creates a TT Stop order that only triggers if the available quantity on the same side of the market as your selected price is less than or equal to 20. In this example, you would configure the order as follows.

  1. From the Price Type dropdown, select Same Side. Then, select Qty and <= from the dropdown and enter 20 as the quantity.

  2. Specify other information for the order, as desired.
  3. Enter the order at the desired price and quantity above the market.

    If you submitted a Buy stop at 2961.50, the TT Stop parent order would resemble the following.

Setting a trigger that trails the market

Instead of setting a trigger at a specific price, you can create a trigger that follows the market by a number of ticks. If the market moves away after you enter the order, the TT Stop trigger will also move away to trail the price by a number of ticks. If the market then reverses, the TT Stop order will maintain its current price.

The following example enters a Sell-side TT Stop order that trails the last-traded price by two ticks:

  • Trigger Price: Sets the price at which to trigger the parent synthetic order.

    Possible values include:
    • LTP: Last Traded Price
    • Ask: Best Ask
    • Bid: Best Bid
    • Same Side: Evaluates the trigger using the inside market price in the Buy/Sell direction of the order:
      • Best Bid for Buys
      • Best Ask for Sells
    • Opposite Side: Evaluates the trigger using the inside market price in the opposite Buy/Sell direction of the order:
      • Best Ask for Buys
      • Best Bid for Sells
    Note: Using Same and Opposite sides instead of Bid and Ask lets you create a single order template that works when submitting either Buy or Sell orders instead of requiring separate templates for Buy and Sell orders.

    Tip: A dropdown for this value is added to the MD Trader Order Entry Panel to let you set the value without needing to reopen the flyout panel.

    Note: If you click a custom action button (or use a hotkey) for this TT Order Type that also specifies an order template, these two fields will not be displayed, as the template already defines their desired values.Right-clicking on the button displays these parameters. You can also click the edit button to make changes, if desired.

  • (Secondary Qty Trigger): Sets a secondary trigger condition based on:
    • Executed quantity when the Price Type parameter is LTP
    • Quantity of the best ask when the Price Type parameter is Ask
    • Quantity of the best bid when the Price Type parameter is Bid
    You can select a quantity or a percentage and select whether to use >= or <= to the specified value.
  • Reset on revert: Resets the trade quantity counter back to zero, if the inside market backs away from the trigger price.

    Note: This property is for trigger orders waiting for a specific quantity to trade at a specific price level. If the product trades beyond the trigger price, the order is triggered regardless of the quantity traded.
  • Trail (ticks): Specifies the number of ticks away from the specified Price Type the order should trail the market.

Adding a secondary liquidity condition for the trigger

To provide even greater control of when a TT Stop order submits its child order into the market, you can set a secondary, liquidity-based condition. When the price reaches the TT Stop trigger price, you can check the available quantity of a different price level. Only when both conditions are true, does the TT Stop parent order submit its child order to ther market.

Note: When using a second condition, precisely one of the conditions must use an LTP trigger.

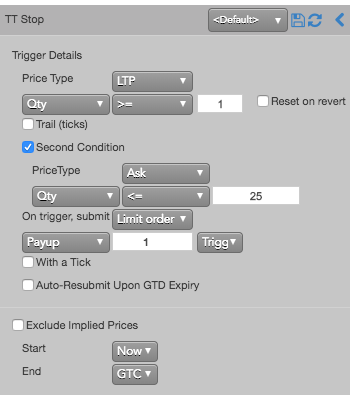

The following example configures a TT Stop order to trigger a Stop order only when a trade occurs at a price level with less than half of the order quantity available at the price level on the opposite side of the market:

  1. From the Price Type dropdown, select LTP and set the the desired order quantity.

    Add PIC

  2. Enable Second Condtion.

    Addtional settings are revealed.

    Add PIC

  3. From the Price Type dropdown, select Opposite Side; then set the trigger to % <= 50.

    Add PIC

  4. Enter the order on the desired side of the market.

    If you entered a Sell-side TT Stop order, the parent would would be similar to the following.

    Add PIC

Setting the type and price of the child order

When the TT Stop parent order is triggered, it will enter a child order into the market. The TT Stop order lets you enter the following types of child orders:

  • Market order
  • Limit order
  • Market Limit Market (MLM) order

To configure the child order details:

  1. In the Trigger Details section of the flyout, configure the trigger condition as desired.
  2. In the Order Details section, select the order type. In this example, we will submit a Limit order, so select Limit order from the On trigger submit dropdown.
  3. For a Limit order, you can use payup ticks to enter the child order using a relative price. In this example, we set the payup ticks to 0 ticks away from the trigger price to enter the order at the trigger price.

    You can also use positive numbers to price the order further away from the market or negative numbers to price the order closer to the market from the selected price type.
  4. Enter the order at the desired side and trigger price.

    If you entered a Buy stop at 2954.50, the parent order would resemble the following.

    1. With 0 payup ticks, the child order will be entered at the trigger price.
    2. With postive payup ticks, the child order will be entered above the trigger.
    3. With negative payiup tics, the child order will be entered below the trigger.
    When the order is triggered, the TT Stop parent will enter its child order at 2954.50.

Aggressing the price of a working child order based on market conditions

You can also apply With-A-Tick functionality to the child orders. This feature automatically gives traders the ability to work an order at one price and automatically pay up one tick based on changes in market liquidity. It re-prices the child order one tick toward the market when the quantity available at the opposite drops below a user-defined threshold.

To configure each child order to pay-up one tick if the available quantity on the opposite side of the market drops below 10, you would use the With a Tick feature as follows.

  1. Specify the desired quantity and price settings.
  2. Enable With a Tick, set the value to 20 and select Qty from the dropdown.

  3. Enter an order at the desired price.

    If you entered a Buy order at 1.11355, the TT Stop parent order would resemble the following.

    When the TT Stop order is triggered, it looks at the available quantity at 11360. If the available quantity is less than 20, the TT Stop parent order will submit its child order at 11360.

Setting start and end times for a TT Stop parent order

By default, a TT Stop order begins working immediately after submission and continues to work until canceled. You can, however, customize when a TT Stop parent order begins working and when it stops.

Note: If you specify both a trigger and a future start time, the start time takes precedence. When the specified start time is reached, the TT Stop parent order will begin working and evaluate the trigger condition at that time.

To set start and stop times for a TT Stop parent order:

  1. For the Start setting, click the dropdown arrow and select the desired start time option.

    In this example, you select Time.
  2. Set a start date and time in the calendar selector, and click Apply.

    Note: If you specify a future start time, the Order Book will show the TT Stop parent order Status as Working and its SynthStatus as Waiting.
  3. For the End setting, click the dropdown arrow and select one of the following:
    • GTC: Keeps the TT Stop parent order working until it is canceled.
    • Time: Sets a time and date for when the TT Stop parent order ends.
    • Day: Cancels the TT Stop parent order at the end of the trading session.

    Note: When creating or using an order template and using the Time option, the Start and End dates automatically adjust if originally set in the past.

  4. Enter the order at the desired price level.

    If you placed the order with a future start time, the TT Stop parent order would appear in MD Trader and the Order Book similar to the following.

    The Order Book shows the status of the future order.
    • A - The Status is Working, which indicates the TT Stop parent order is working on the Algo Server.
    • B - The SynthStatus is Waiting, which indicates the order has not yet started working in the market. When the start time is reached, the SynthStatus will also change to Working.

TT Stop order Audit Trail messages

The Audit Trail displays information about what causes TT Stop orders to be triggered. When a TT Stop order is triggered, the Message column is populated with information similar to the following:

The message uses the following format:

T[Trigger Type] [TriggerPrice] T[TriggerType][TriggerQtyType] [TriggerCompare] [TriggerQtyValue] M[TriggerType] [Trigger Type Price] M[TriggerType] [Qty At Trigger Type]

where the "T" values indicate the values the user provided for the TT Stop order and the "M" values represent the market values that triggered the TT Stop order.

In this example, the following message was recorded when the TT Stop order was triggered:

TLTP 153.719 TLTPQty GTE 5 MLTP 153.719 MLTPQty 8

The message indicates the user entered a TT Stop order with a trigger condition of LTP = 153.719 and LTP Qty  (LTQ) >= 5. The market value that triggered the TT Stop order was an LTP = 153.719 and LTP Qty  (LTQ) = 8.

TT Stop order parameters

Trigger Details parameters

  • Trigger Price: Sets the price at which to trigger the parent synthetic order.

    Possible values include:
    • LTP: Last Traded Price
    • Ask: Best Ask
    • Bid: Best Bid
    • Same Side: Evaluates the trigger using the inside market price in the Buy/Sell direction of the order:
      • Best Bid for Buys
      • Best Ask for Sells
    • Opposite Side: Evaluates the trigger using the inside market price in the opposite Buy/Sell direction of the order:
      • Best Ask for Buys
      • Best Bid for Sells
    Note: Using Same and Opposite sides instead of Bid and Ask lets you create a single order template that works when submitting either Buy or Sell orders instead of requiring separate templates for Buy and Sell orders.

    Tip: A dropdown for this value is added to the MD Trader Order Entry Panel to let you set the value without needing to reopen the flyout panel.

  • (Secondary Qty Trigger): Sets a secondary trigger condition based on:
    • Executed quantity when the Price Type parameter is LTP
    • Quantity of the best ask when the Price Type parameter is Ask
    • Quantity of the best bid when the Price Type parameter is Bid
    You can select a quantity or a percentage and select whether to use >= or <= to the specified value.
  • Reset on revert: Resets the trade quantity counter back to zero, if the inside market backs away from the trigger price.

    Note: This property is for trigger orders waiting for a specific quantity to trade at a specific price level. If the product trades beyond the trigger price, the order is triggered regardless of the quantity traded.
  • Trail (ticks): Specifies the number of ticks away from the specified Price Type the order should trail the market.
  • Secondary Condition: Optional condition to require before triggering the order. The order is triggered only when the initial and secondary conditions are both TRUE.

    Note: When specifying a second condition, exactly one of the conditions must use an LTP trigger.
    • Trigger Price: Sets the price at which to trigger the parent synthetic order.

      Possible values include:
      • LTP: Last Traded Price
      • Ask: Best Ask
      • Bid: Best Bid
      • Same Side: Evaluates the trigger using the inside market price in the Buy/Sell direction of the order:
        • Best Bid for Buys
        • Best Ask for Sells
      • Opposite Side: Evaluates the trigger using the inside market price in the opposite Buy/Sell direction of the order:
        • Best Ask for Buys
        • Best Bid for Sells
      Note: Using Same and Opposite sides instead of Bid and Ask lets you create a single order template that works when submitting either Buy or Sell orders instead of requiring separate templates for Buy and Sell orders.
    • (Secondary Qty Trigger): Sets a secondary trigger condition based on:
      • Executed quantity when the Price Type parameter is LTP
      • Quantity of the best ask when the Price Type parameter is Ask
      • Quantity of the best bid when the Price Type parameter is Bid
      You can select a quantity or a percentage and select whether to use >= or <= to the specified value.
    • Trail (ticks): Specifies the number of ticks away from the specified Price Type the order should trail the market.
  • Exclude Implied Prices: Sets whether to exclude implied prices when evaluating the triggering logic.

Order Details parameters

  • On trigger submit: Sets the type of exchange-native order to submit when the order is triggered.

    Possible values include:
    • Limit order
    • Market order
    • MLM (Market Limit Market) order
  • Payup - Sets the number of ticks from the specified price to submit the Limit order. Positive values indicate towards the market and negative values indicate away from the market.

    The offset is based on the following prices:
    • LTP: Last Traded Price
    • Ask: Best Ask
    • Bid: Best Bid
    • Trigger: Trigger price
    • Same Side: Evaluates the trigger using the inside market price in the Buy/Sell direction of the order:
      • Best Bid for Buys
      • Best Ask for Sells
    • Opposite Side: Evaluates the trigger using the inside market price in the opposite Buy/Sell direction of the order:
      • Best Ask for Buys
      • Best Bid for Sells

    Tip: An entry field for this value is added to the MD Trader Order Entry Panel to let you set the value without needing to reopen the flyout panel.

    Note: If you click a custom action button (or use a hotkey) for this TT Order Type that also specifies an order template, these two fields will not be displayed, as the template already defines their desired values.Right-clicking on the button displays these parameters. You can also click the edit button to make changes if desired.

  • Limit price: Sets the price for the child Limit order.
  • With a Tick: Sets the threshold for the With A Tick behavior that reprices the order one tick toward the market when available quantity at the opposite inside market is at or below the specified quantity threshold.

    The quantity can be specified as:
    • Qty for an absolute number of contracts
    • % for a percentage of the initial quantity for this order
  • Auto-Resubmit Upon GTD Expiry: Valid only when the child order TIF is Day (GTD). If any child orders are not completely filled by the session close, the exchange will expire the child orders; when the market reopens, the parent order will then resubmit the child orders with the same parameters as when they expired.

Precondition Details parameters

  • Start: Sets the date and time to start executing the order

    Possible values include:
    • Now to start the order immediately
    • Time to display a date/time picker for you to indicate when to start the order
    • Pre-open to enter the order at the pre-open state defined by an exchange
    • Open to enter the order when the exchange opens its trading session
  • End: Sets the time to stop executing the logic of the order

    Possible values include:
    • GTC, which leaves the order working until canceled
    • Time, which displays a date/time picker for you to indicate when to stop the order
    • Day, which leaves the order working until the market closes

    If End Time is selected and the End Time is reached, the order is deleted and the specified End Action is applied to its child orders. If the trading session is closed when the End Time is reached, the delete request will fail, leaving working GTC child orders on the exchange. It is your responsibility to delete these orders when the exchange re-opens.
  • At End Action: Sets the action to take for any unfilled balance when the End time is reached. Visible only for a custom End time.

    Possible values include:

    • Cancel — Cancels all child orders and stops the order type.
    • Go to Market — Cancels the resting Limit order and submits a Market order. When selected, the "Mkt Order Lmt ticks" option is displayed.
    • Mkt Order Lmt ticks — Sets the number of ticks from LTP to submit a Limit order through the opposite inside market. If the checkbox is checked: all child orders are canceled, a Limit order is submitted for the unfilled quantity at a price that's a set number of ticks from LTP, and the order type is stopped. If the checkbox is unchecked: all child orders are canceled, a Market order is submitted for the unfilled quantity, and the order type is stopped.
